DMX-WRE

How To Use wireless DMX (DMX-WTR DMX-WRE)

 Features:

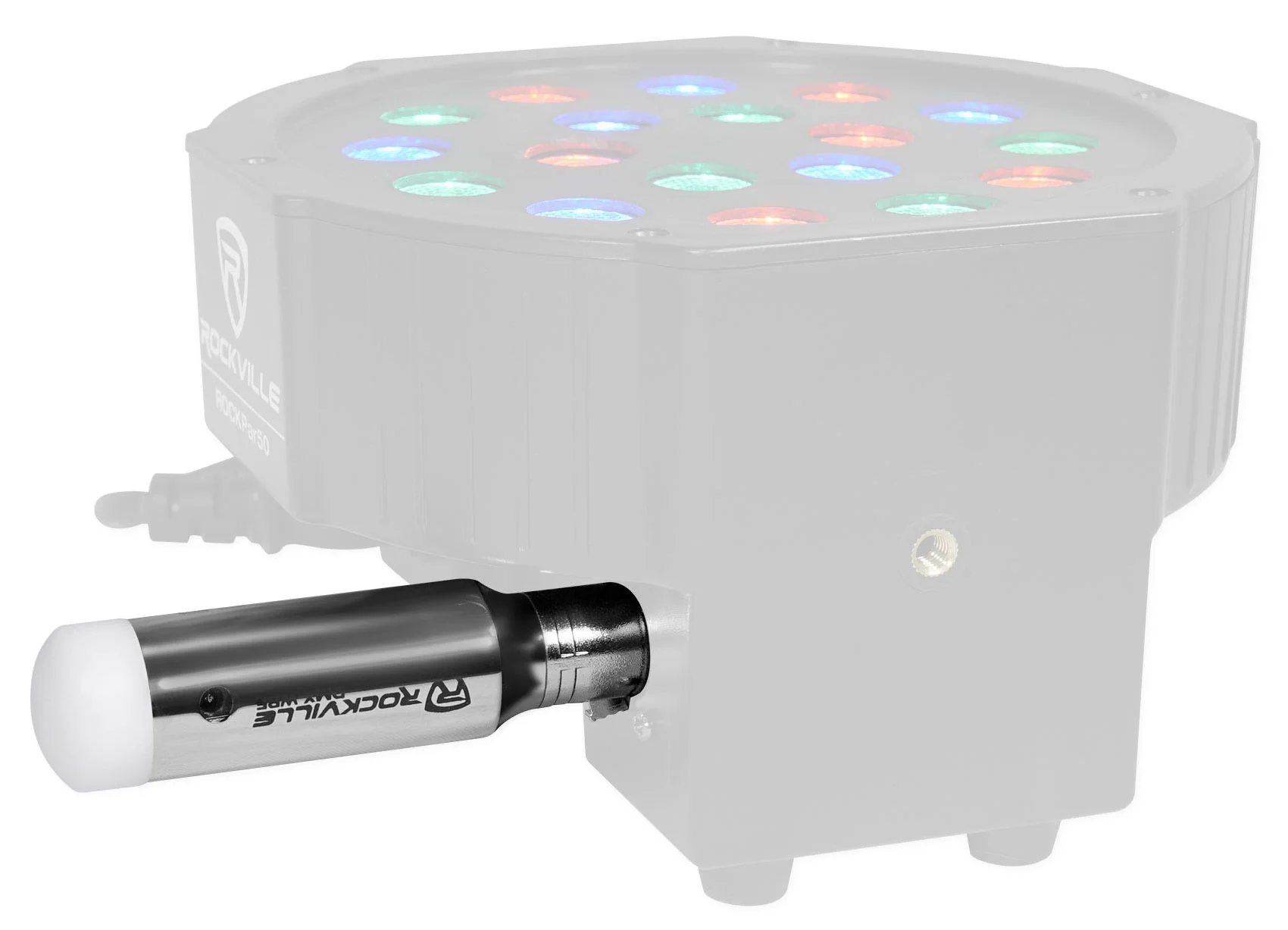

• Rockville DMX-WRE 2.4GHz Wireless DJ DMX Receiver
• Built-in 650mAh rechargeable battery
• Battery power/working time: 9 hours (only takes 2 hours to fully charge)
• Can also be used while it's plugged in and charging!
• Daisy-chain multiple lights together and use one receiver to control all of the connected lights. This setup requires one transmitter and one receiver
• Connect one transmitter to your DMX controller and then one receiver to each light, and each light will have its own channels on the controller so they can all be controlled independently (this can be done with up to 7 lights/groups)
• Makes it easy to set up all of your lights without a mess of wires!
• Controls work without any delay. These are extremely reliable
• The product uses the 2.4GHz frequency band
• Efficient GFSK modulation with 126 channel high-speed frequency hopping (FHSS). Hops 1100 times per second for interference-free operation
• 3-color LED displays status and parameters
• One-touch operation
• 7 selectable groups of lights can be controlled independently
• Connect up to 25 receivers to each transmitter
• Requires you to hold the button to change linking - this prevents accidental un-linking
• System information - CPU: 32-bitARM Core
• Distance: 1968 feet (600 meters)
• Modulation: GFSK maximum transmit power: 23 dBm
• Receiver sensitivity: -94 dBm
• Unit dimensions: 4.7" long and antenna is 3.5" tall
• Weight: 0.4 lbs

Applications:

• Stage lighting
• Up lighting (wall washing)
• DJ lighting
• Clubs/bars
• Party halls
• Theatrical performances
• Stadium lights
